PSG-STEP: Innosphere is a joint initiative supported by NSTEDB, Department of Science & Technology [DST], Govt. of India and PSG-STEP, PSG College of Technology aimed to empower the hardware entrepreneurs and aspiring tech innovators by providing access to a wide range of tools and equipment to develop, assemble and test a physical prototype in an ESD safe environment.
The State-of-the-Art Facility Located Under One Roof Comprises of:
Laser Cutting and Engraving

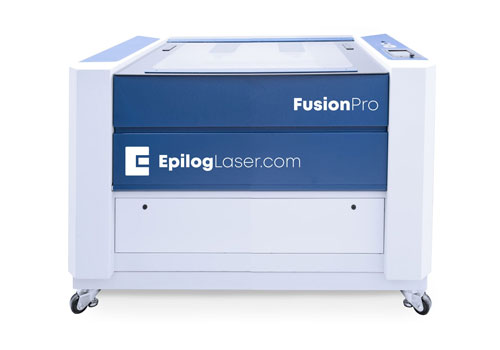

EPILOG FUSION PRO 32 Laser Machine
Laser Tube Wattage:60 watts [air-cooled]
Working Area:6812×508 mm
Maximum Z-Depth:311mm
Resolution:75 -1200 dpi [user controlled]
Operating Modes:6Raster, Vector & Combined Modes Material s
Memory:Multiple files up to 1GB
mpatible Materials [Engrave & Cut]:Wood, Acrylic, Plastic, Fabric, Leather, Rubber, Fiber Glass, Matte Board & Corian
[Engrave Only]:Anodized Aluminum, Glass, Coated Metals, ceramic. Tile & Marble

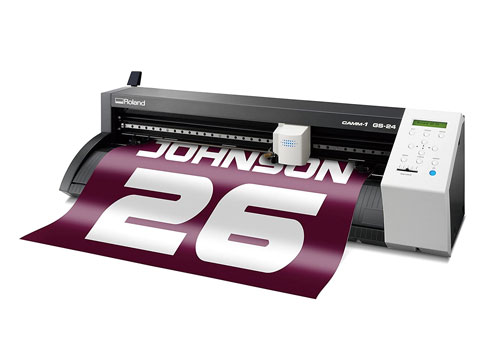

ROLAND CAMM-1 GS 24 Vinyl Cutter
Loadable Material Width:50 to 700 mm
Maximum Cutting Area:584mm x 2500 mm
Max Cutting Speed:500 mm/s
Max Cutting Media Thickness: 71mm
Compatible Materials:Vinyl, Paint Mask Twill, Sandblast & Twill
3D Printing & Scanning

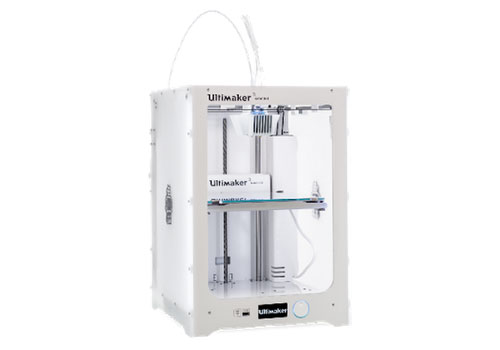

ULTIMAKER 3 EXTENDED - [ RAPID PROTOTYPING 3D PRINTER – I ]
Technology:Fused Filament Fabrication [FFF]
Build Volume: 215 x 215 x 300 mm
Print Head Travel Speed: 30 to 300 mm/s
RZ resolution:2.5 micron,
Compatible Filament [2.85mm]: Nylon, PLA, ABS, CPE, CPE+, PVA, PC, TPU 95A & PPP,

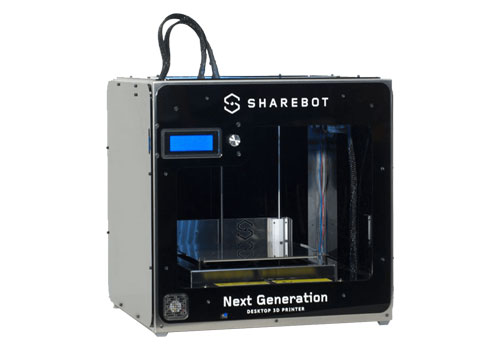

SHAREBOT 42 [ RAPID PROTOTYPING 3D PRINTER – II ]
Technology:Fused Deposition Modeling [FDM]
Build Volume:250x220x200mm
Print Head Travel speed: 25 mm/s
Z Resolution: 50 micron
Compatible Filaments [1.75mm):PLA-S, Nylon-Carbon,Thermoplastic Polyurethane & ABS-HF

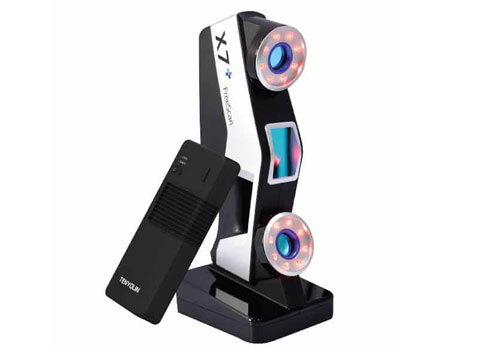

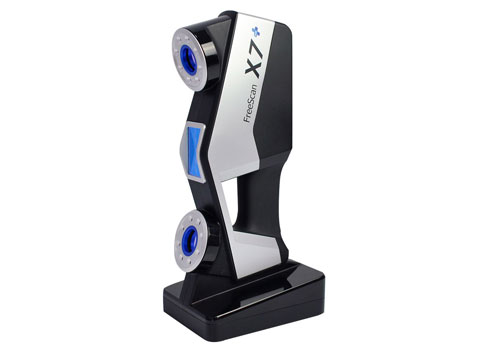

SHINING3D FREE SCAN X7 HANDHELD INDUSTRIAL GRADE SCANNER
Measuring Accuracy:0.03mm
Resolution:0.05mm
Scan Speed, Range & Depth: 480, 000 scans/s| 100-8000 mm | 250mm
Light Source: 14 line laser ray
Laser Category:Class II [eye safe]
Net Weight:0.95 Kg
PCB Fabrication, Design & Assembly

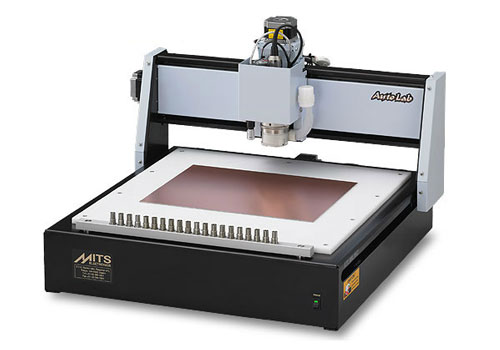

MITS AUTOLAB - PCB MILLING MACHINE
Working Area:229 x 300mm
Tool Change: Automatic / 10 auto tool change
Resolution: 0.156 µm
Maximum Thickness:30mm
Drilling: 0.2 – 3.175mm [with camera monitoring system]

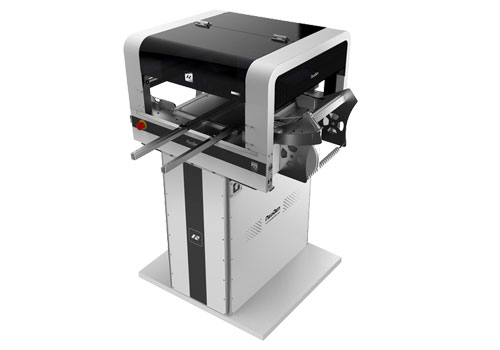

NEODEN 4 SMT PICK & PLACE MACHINE [FULLY AUOTMATIC]
Components Per Hour:2000
Placement Accuracy: ±0.02mm [Repeatable Positioning Precision)
Placement Capacity: 5000 CPH [vision off], 3500 CPH [vision on]
Number of Heads:4 heads with 360-degree orientation
Applicable PCB Size: 310mm*1200mm/35QmM* 400mm
Automatic Electric Feeder: Maximum 48 sets with auto error correction

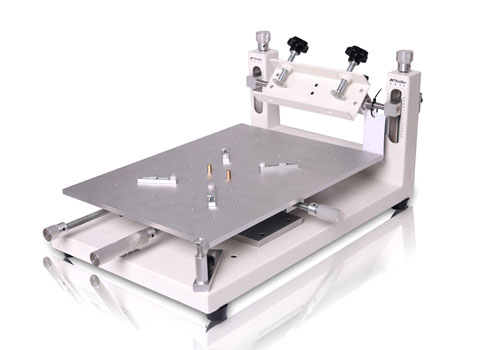

NEODEN CM3040 SMT SOLDER STENCIL PRINTER
Platform Size& Height:300x400mM | 220mm
Frame Size: 370 x 470mm
PCB Size: 250x300mm
PCB Board Thickness:0-80 mm
Repeatability: ±0.01mm

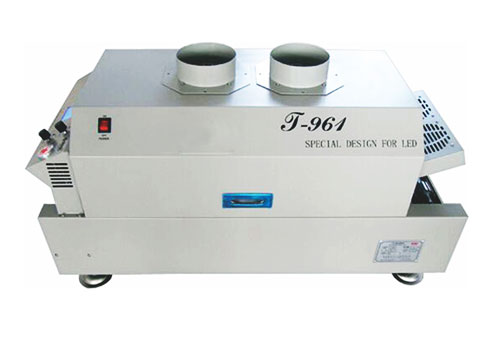

PUHUI T961 REFLOW OWEN CONVECTION & CONVEYOR
Heating Zone Quantity:36 Zones
Heating Zone Length: 730mm
PCB Board Width: 230mm [max]
Temperature Control:±1°C
Initial Heat-up Time: Around 7mins
3D SaaS - 3D SCANNING AS A SERVICE
SHINING3D FREESCAN X7
Industrial Grade Scanner
Measuring Accuracy: 0.03mm
Resolution: 0.05mm
Scan Speed:4,80,000 scans/s
Range: 100-8000 mm
Light Source: 14 line laser ray
Laser Category: Class II [eye safe]
Net Weight: C0.95 Kg

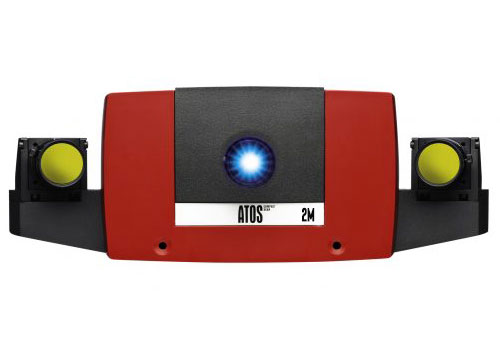

GOM ATOS SCAN 2M
High-Resolution 3D Scanner
Camera Resolution: 2MP
Working Range: 0.40 – 1.2m
Scanning Area (Near):35 x 30 mm
Scanning Area (Far): 1000 x 750 mm²
Technology: Blue Light
Max. Resolution: 0.02 mm
